Not all nebulas are remnants of supernovas
, but many are. They and other supernova remnants start out with a massive star. Stars are balls of gases, which are arranged in layers, and when a star explodes in a supernova, those layers enable the formation of the beautiful swirls.
“On the outside, the gases have low density and on the inside high density, and very deep in the star, the density begins to force the gases together to make iron in the star’s core,” Ranjan said.
“After this point the star runs out of nuclear fuel, so the outward force caused by nuclear fusion stops balancing the inward gravitational force. The extreme gravitation collapses the star,” Musci said.
In the center of the star, there is a point explosion, which is the supernova
. It sends a blast wave traveling at about a tenth of the speed of light ripping through the gases, jamming their layers together.
Heavier gas in inner layers stabs turbulent outcrops into lighter gas in the outer layers. Then behind the blast wave, pressure drops, stretching the gases back out for a different kind of turbulent mixing.
“It’s a hard push followed by a prolonged pull or stretch,” Musci said.
Explosive mimics supernova
The researchers used small amounts of a commercially available detonator (containing RDX
, or Research Department eXplosive, and PETN
, or pentaerythritol tetranitrate) to make the concise miniature blast, which sent a clean wave through the interface between the heavier and lighter gases in the machine.
In nature, the blast wave goes out spherically in all directions, and Musci achieved a partial representation of its curvature in the machine’s blast wave. In nature and in the machine, interfaces between the gases are full of small, uneven twists and turns called perturbations, and the blast wave whacks them at skewed angles.
“That is important to growing the initial perturbation that leads to turbulence because that unevenness puts a torque on the interface between the gas layers,” Musci said.

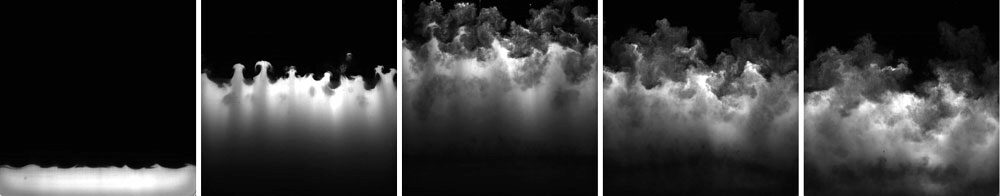

Convolutions and curlicues ensue to make supernova remnants, which expand for thousands of years to become softer and smoother forms that stir our hearts with their splendor. To physicists, those initial twists are highly recognizable structures
interesting for study: turbulent spikes of heavy gas protruding into light gas, “bubbles” of light gas isolated in areas of heavy gas, and curls typical of early turbulent flow.
“One of the most interesting things we saw related to a mystery about supernovas — they shoot high density gas called ejecta way out, which may help create new stars. We saw some of this gas propulsion in the device where heavy gas was propagated way out into the light gas,” Musci said.
Supernova remnants perpetually expand at speeds of hundreds of miles per second, and the new machine could help refine calculations of those speeds and help characterize remnants’ changing forms. The Crab Nebula’s supernova was recorded in the year 1054 by Chinese astronomers
, but for many other remnants, the machine could also help calculate their moment of birth.
Notorious Supernova Remnants
Image credits: NASA, ESA, CXC, RIKEN and GSFC, Sato, DSS, SAO, STScI, Hester
Inertial confinement fusion
The machine’s insights would apply in reverse to help with the development of nuclear fusion energy. The process called inertial confinement fusion applies extreme force and heat from the outside inward evenly onto a tiny area where two isotopes of hydrogen gas are layered upon each other, one denser than the other.
The layers are forced together until the atoms’ nuclei fuse, unleashing energy. Fusion researchers are striving to eliminate turbulent mixing. What is beautiful in the supernova makes nuclear fusion less efficient.
